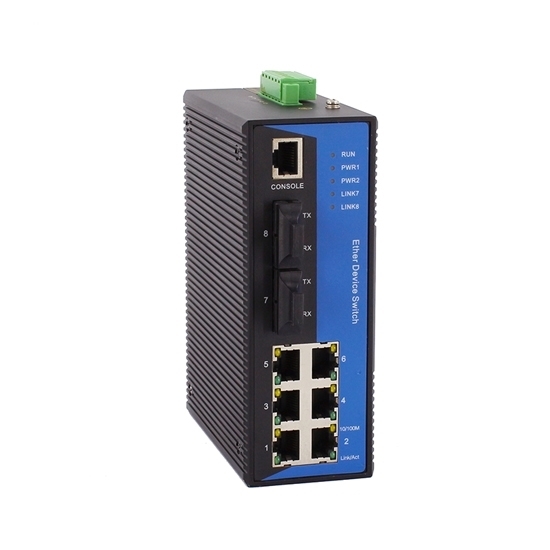

8 Port Managed Industrial Switch, 10/100M, Din Rail

0 reviews • Write a review

from

$584.61

Ex Tax: $584.61

Stock: In Stock
Model: RDDLZ-ES-EN6208
Weight: 1.00
SKU: RDDLZ-ES-EN6208

Available Options

Short Description

Power Supply Selection

Port Selection

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High quality eight ports manaded industrial Ethernet switch, indicator status display, MW-Ring with the recovery time<20ms, static multicast/IGMP Snooping, VLAN/ Qos/ Port link aggregation /port mirroring.

Specification

Model	RDDLZ-EN6208
Software Performance
Redundancy Protocol	Support MW-Ring and the recovery time<20 ms. Support STP/RSTP
Multicast Routing	Support IGMP snooping/ IGMP v1/v2/v3 Support GMRP Support static multicast
Management and Maintenance	Support Console and Web management methods Support SNMPv1/v2c Support unified PC software management
Technical Specifications
Ethernet Standard	IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base-FX IEEE802.3x-Flow Control IEEE802.3z-1000BaseLX IEEE802.3ab-1000BaseTX IEEE802.1ab IEEE802.1D-Spanning Tree Protocol IEEE802.1w-Rapid Spanning Tree Protoco IEEE802.1Q -VLAN Tagging IEEE802.1p -Class of Service IEEE802.1X-Port Based Network Access Control
Switch Properties
Priority Queue	4
VLAN ID	1-4096
IGMP Groups	256
MAC Table	4k
Switch Bandwidth	1.6Gbps
Switch Delay	<5μs
Interface
10/100Base Ports	Port numbers: 8
	Connector: 9 fixed F(x) (Single/multi-mode or SC/FC/ST port available) or RJ45
	Baud rate: 100Base-FX (fiber port), 10/100/1000M for adaptive port
Console Port	RS232/RJ45
Terminal Block for Power Input	5.08mm terminal block
Terminal Block for Relay Alarm	5.08mm terminal block, 1A@24VDC
Communication Distance
Twisted-pair	100m (CAT5/CAT5e cable)
Multi-mode Fiber	10/100Base multi mode: 1310nm 2km
Single-mode Fiber	10/100Base single mode: 1310nm 20/40km; 1550nm 60/80km
LED Indicator Lights
Front Panel LED	Port light: LINK/ACT, SPEED
	Running light: RUN
	Power LED: PWR1/PWR2
Power Requirements
Power Input	DC110~220V (DC110~370V range) or AC100~240V (AC85~264V range) DC12V/DC24V/DC48V available
Full-load Consumption	<8W
Overload Protection	support
Inversed Protection	support
Redundancy Protection	support
Working Environment
Operating Temperature	-40°C~85°C
Storage Temperature	-40°C~85°C
Ambient Humidity	5%~95% (non-condensing)
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	35mm din rail-mounted installation
Dimension	54mm x 144mm x 110mm
Weight	600g
Industry Standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8,Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6

Dimensional Drawing (mm)

Tips: How to choose a right industrial Ethernet switch?
The main reference factor for selecting an Ethernet switch:
1. Backplane bandwidth, Layer 2/3 switching throughput.
2. Number and type of ports.
3. Qos, 802.1q priority control, 802.1X, 802.3X support.
4. Exchange cache, main memory, forwarding delay and other parameters.
5. Line-speed forwarding, routing table size, access control list size, support for routing protocols, support for multicast protocols, and scalability are all worth considering. They should be investigated according to actual conditions.
