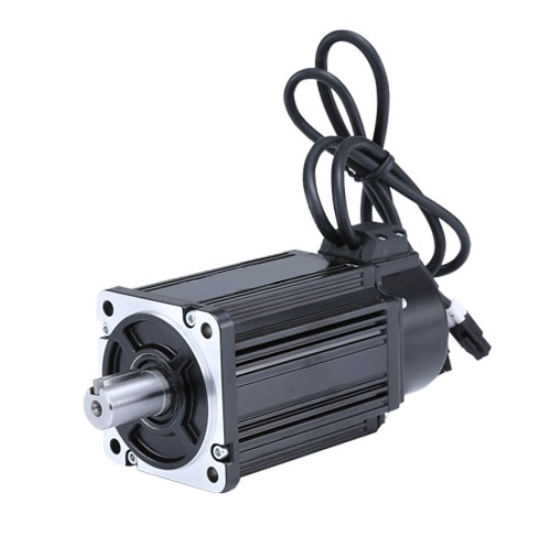

730W 2000 Rpm Brushless AC Servo Motor

0 reviews • Write a review

from

$488.34

Ex Tax: $488.34

Stock: In Stock
Model: ATO80ST-M03520
Weight: 1.00
SKU: ATO80ST-M03520

Available Options

Short Description

With Matched Controller

Absolute Encoder

Motor Cable & Encoder Cable

Motor Encoder Type

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High precision 730 watt AC brushless servo motor with lower cost, 2000 rpm speed, 3.5 Nm rated torque, single phase or three phase 220V AC voltage, available in a 80mm square flange size.

Specification

Basics	Model	RDDLZ80ST-M03520
	Matched Drive Model	RDDLZMG-1000 (Click it to the product page)
	Square Flange Size	80 mm
	Rated Power	730 W
	Rated Voltage	single phase or three phase 220V AC
	Rated Current	3 A
	Rated Speed	2000 rpm
	Rated Torque	3.5 Nm
	Peak Torque	10.5 Nm
	Weight	4 Kg
	Length	179 mm
Technical Parameters	Voltage Constant	71 V/ 1000r/ min
	Torque Coefficient	1.17 N.m/ A
	Torque Inertia	2.63 x 10^-4 Kg.M²
	Line-Line Resistance	3.65 Ω
	Line-Line Inductance	8.8 mH
	Electrical Time-Constant	2.4 ms
	Incremental Encoder Line Number	2500 PPR
	Absolute Encoder	17 bit, 23 bit (Tamagawa brand)
	Insulation Class	Class B
	Safety Class	IP65
Environment	Temperature	-20℃ ~ +40℃
Environment	Humidity	<90%RH, (no dewing)

Dimension (unit: mm)

L (without brake): 179mm, L (with brake): 233mm

Details

Winding and Encoder Connection

1. For servo motor winding

Motor Winding Plug	Incremental Encoder Line	U (Red)	V (Yellow)	W (Blue)	PE (Yellow-Green)
	Absolute Encoder Line	PE (Yellow-Green)	U (Red)	V (Blue)	W (Yellow)
	Socket Number	1	2	3	4

2. For incremental encoder

Incremental Encoder Socket (15 Pin)	Signal Definition	5V	0V	B	Z-	U	Z	U-	A	V	W	V-	A-	B-	W-	PE
Incremental Encoder Socket (15 Pin)	Socket Number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

3. For absolute encoder

Absolute Encoder Socket (7 Pin)	Signal Definition	E-	E+	SD-	0V	SD+	5V	PE
Absolute Encoder Socket (7 Pin)	Socket Number	2	3	4	5	6	7	1
