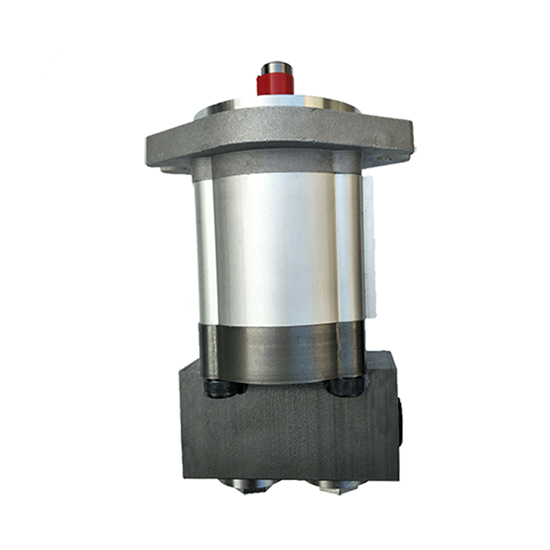

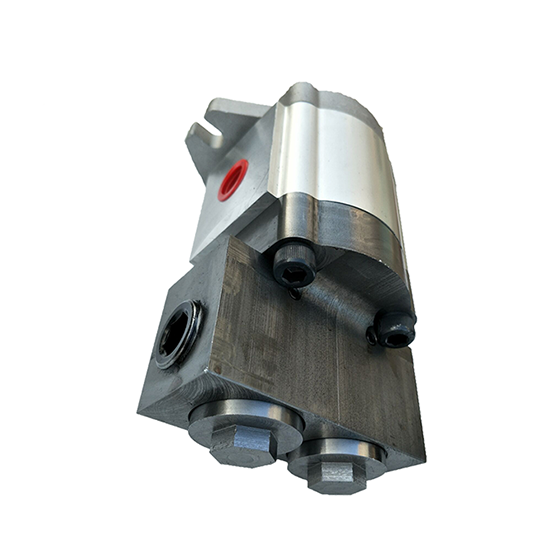

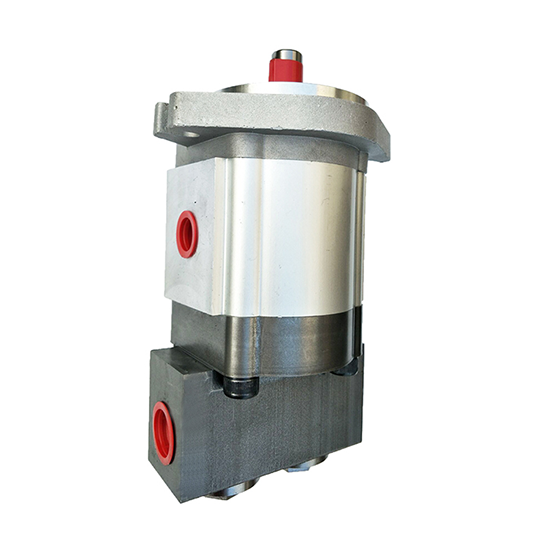

7/9/10/11 GPM Hydraulic Gear Pump, 3300 Psi
from
$402.46
Ex Tax: $402.46
- Stock: In Stock
- Model: RDDLZ-HGPP-0235
- Weight: 1.00
- SKU: RDDLZ-HGPP-0235
Professional supplier hydraulic gear pump for sale. Displacement 7/9/10/11 Max. GPM for selection, working pressure 2600~3300 psi, speed 1500~2000 rpm, oil inlet/outlet ports thread 3/4 inch, small size, lightweight, high pressure, low price.
Specification
| Model | RDDLZ-KC-3A-ALR1 | ||||||
| Displacement | mL/ rev | ||||||
| 14.3 | 16.5 | 19 | 23 | 25 | 28 | 30 | |
| Max. GPM (Gallon/min) | |||||||
| 5.7 | 6.5 | 7.5 | 9.1 | 9.9 | 11.1 | 11.9 | |
| Rated Speed | 1500 rpm | 1500 rpm | 1500 rpm | 1500 rpm | 1500 rpm | 1500 rpm | 1500 rpm |
| Max. Speed | 2000 rpm | 2000 rpm | 2000 rpm | 2000 rpm | 2000 rpm | 2000 rpm | 2000 rpm |
| Min. Speed | 600 rpm | 500 rpm | 500 rpm | 500 rpm | 500 rpm | 500 rpm | 500 rpm |
| Rated Pressure | 2600 psi (18 MPa) | 2600 psi (18 MPa) | 2600 psi (18 MPa) | 2600 psi (18 MPa) | 2600 psi (18 MPa) | 2600 psi (18 MPa) | 2300 psi (16 MPa) |
| Max. Pressure | 3300 psi (23 MPa) | 3190 psi (22 MPa) | 3190 psi (22 MPa) | 3190 psi (22 MPa) | 3190 psi (22 MPa) | 3190 psi (22 MPa) | 2900 psi (20 MPa) |
| Volumetric Efficiency | 90% | 92% | 93% | 93% | 93% | 93% | 93% |
| Mechanical Efficiency | 85% | 85% | 85% | 85% | 85% | 85% | 85% |
| Oil Ports | 1 inlet, 2 outlet | ||||||
| Way of oil in and out | Rear in, side out | ||||||
Note:
- Please use RDDLZ gear pump with sufficient oil, otherwise there is a risk of burnout!
- Calculate the actual displacement value according to the formula: Gallon/min=displacement (ml/rev)*rated speed 1500rpm/3785.41L (speed variation range 500rpm-3000rpm).
Features
- The hydraulic gear pump has 1 inlet and double outlet ports, which can change the direction of high-pressure oil output according to different rotation directions. It is equivalent to saving a reversing valve.
- Housing of the hydraulic gear pump is made of high-strength aluminum alloy, and the back cover is made of high-strength cast iron, which has high strength and good pressure resistance.
- Input shaft connection of the hydraulic gear pump is flat key. Connection of the inlet and outlet ports is 3/4” thread.
- The automatic compensation mechanism for axial and radial clearance enables the hydraulic gear pump to maintain high volumetric efficiency and mechanical efficiency for a long time.
- The hydraulic gear pump uses alloy steel gears, with small fluctuations, high pressure, low noise and stable performance.
- Hydraulic gear pump uses composite material bearings and high-performance sealing elements, has a small starting torque and good tightness, and can work efficiently under harsh working conditions.
- Oil inlet and outlet pipe joints of the hydraulic gear pump can realize multi-directional inlet and outlet, and support bidirectional rotation. Replace back cover, the hydraulic gear pump can be converted into a hydraulic motor, which meets the needs of different working conditions and save costs.

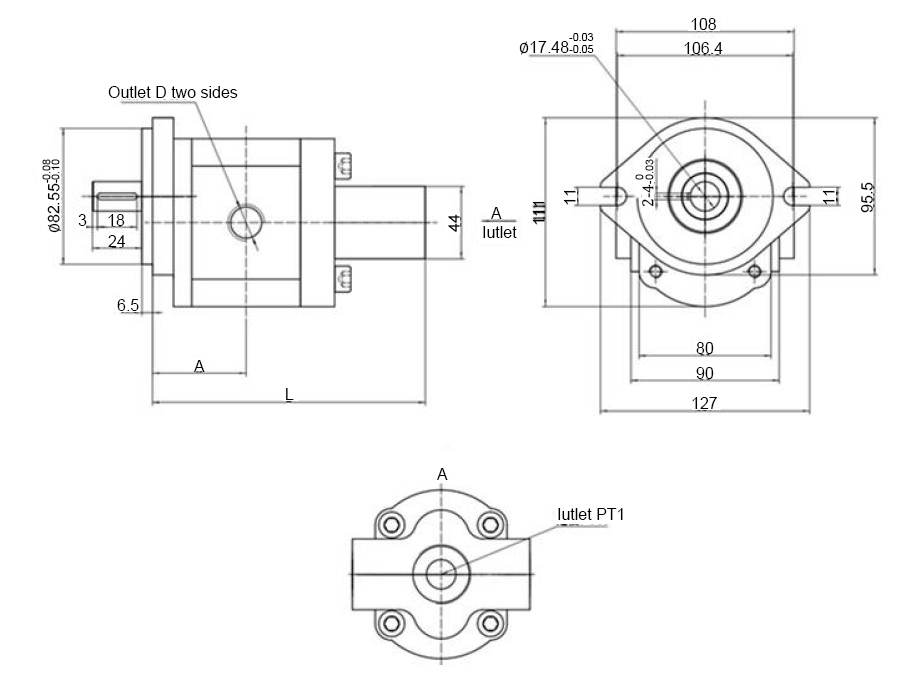

10/12/13/15 GPM Hydraulic Gear Pump Dimensions Diagram (Unit: mm)
| Displacement | A | L | Outlet D |
| 14.3 mL/ rev | 57 | 179 | PT 3/4 inch |
| 16.5 mL/ rev | 59 | 183 | |
| 19 mL/ rev | 61 | 187 | |
| 23 mL/ rev | 65 | 194 | |
| 25 mL/ rev | 66 | 197 | PT 1 inch |
| 28 mL/ rev | 68 | 201 | |
| 30 mL/ rev | 70 | 205 |
Tips: Precautions for using hydraulic gear pump.
- The working oil temperature is -20℃ to 80℃.
- When using hydraulic gear pump in winter, use 32# anti-wear hydraulic oil. When using hydraulic gear pump in summer, use 46# or 68# anti-wear hydraulic oil.
- The working oil filtration accuracy of the hydraulic gear pump is ≤25μm.
- When using hydraulic gear pump for the first time, pay attention to tighten the pipe joints and to remove the air from pipe and system, to avoid the 2-way gear pump from not working properly.
- The front end of 2-way gear pump has no bearing and cannot bear radial force. If you need a radial bearing structure, you can contact us for customization.
- The hydraulic gear pump can not be used for overspeed or overload, so as not to reduce the service life.
- The external drain port of 2-way gear pump must be connected to the oil tank separately, and cannot be mixed with other oil return lines to avoid affecting normal operation.
