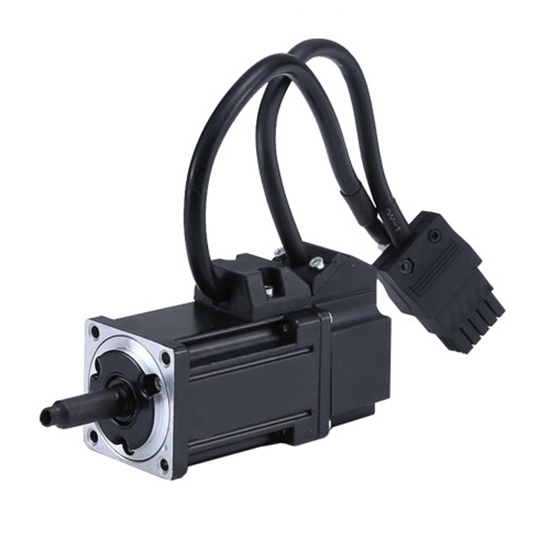

50W AC servo motor for sale, brushless design, rated speed of 3000 rpm, maximum speed up to 3600 rpm. High precision servo motor is widely used in factory automation, embroidery machines, printing machinery, CNC machines, wood carving, and other fields.

Basic Specification

• Model: RDDLZ40ST-M00130220
• Matched Drive Model: RDDLZMG-1000
• Rated Power: 50W
• Rated Voltage: Single phase or three phase 220V AC
• Rated Current: 0.4 A
• Rated Speed: 3000 rpm
• Rated Torque: 0.16 Nm
• Peak Torque: 0.32 Nm
• Square Flange Size: 40 mm
• Motor Length: 75mm
• Weight: 0.47 Kg

Technical Parameters

• Voltage Constant: 36.8 V/ 1000r/ min
• Torque Coefficient: 0.4 N.m/A
• Torque Inertia: 0.025 x 10-4 Kg.M²
• Line-Line Resistance: 108 Ω
• Line-Line Inductance: 108 mH
• Electrical Time-Constant: 1.0 ms
• Incremental Encoder Line: 2500 PPR
• Absolute Encoder: 17-bit, 23-bit (Tamagawa brand)
• Insulation Class: Class B
• Protection Class: IP65

Features

1. Accuracy: RDDLZ AC servo motors realize closed-loop control of position, speed, and torque, overcoming the problem of stepper motor out-of-step.
2. Speed: Good high-speed performance, rated speed can reach 1000-3000 rpm.
3. Adaptability: RDDLZ heavy-duty servo motors with strong anti-overload capability, able to withstand a load three times the rated torque, especially suitable for occasions with instant load fluctuations and requiring quick start.
4. Stable: Our AC brushless servo motors have smooth low-speed operation; no stepping phenomenon similar to a stepper motor will occur when running at low speed, suitable for occasions requiring fast response.
5. Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds.
6. Safety: RDDLZ AC servo motor protection grade is IP65, which meets the waterproof and dustproof requirements.

Dimension (unit: mm)

L (without brake): 75mm, L (with brake): 109mm

Details

Winding and Encoder Connection

Tips: What are the types of servo motor?

Servo motors are mainly classified into AC servo motors and DC servo motors. AC servo motors are also brushless motors, which are divided into synchronous and asynchronous motors. At present, synchronous motors are generally used in motion control. They have a large power range and can achieve great power. Large inertia, low maximum rotation speed, and rapid decrease as the power increases. Therefore, it is suitable for low-speed and smooth-running machines.
