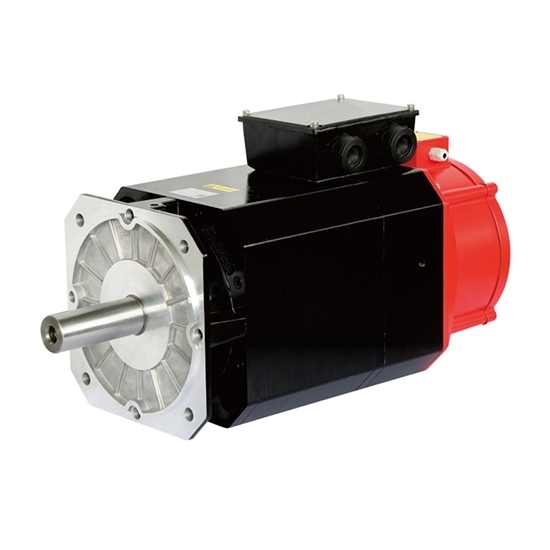

Affordable price AC servo spindle motor for sale online. Rated power 5 hp (3700W), working voltage 3-phase 220V/380V, high speed 6000 rpm, torque 24 Nm. The AC asynchronous servo motor supports vertical/horizontal installation, high speed photoelectric encoder, which is widely used in CNC machine tool spindle control and industrial automation speed control. Matching a driver and a brake resistor is the best configuration.

Basic Specifications

• Model: RDDLZ-204ZJY-4-3.7-15-X
• Rated Power: 5 hp (3.7 kW)
• Rated Torque: 24 Nm
• Rated Voltage: AC 3-Phase 380V, 220V (Optional)
• Rated Current: 8A
• Rated Speed: 1460 rpm
• Max Speed: 6000 rpm
• Rated Frequency: 50Hz
• Weight: 46 kg

Technical Parameters

• Number of Poles: 4
• Rotor Inertia: 0.14 G.D2
• Incremental Encoder Line: 2500PPR
• Installation Method: Flange installation
• Fan Power: 75W
• Fan Voltage: AC 380V
• Insulation Class: F
• Safety Class: IP54
• Insulation and Voltage Resistance: AC 1500V, 1 minute
• Insulation Resistance: DC 500V, 10M above
• Work System: Continuous

Features

1. The AC servo spindle motor is a 3-phase AC induction servo motor, compact structure, small size, high torque.
2. AC servo spindle motor adopts best electromagnetic design, high-speed photoelectric encoder, high precision bearings and F level insulation.
3. AC servo spindle motor is in easy use, stable operation, high control precision, low electromagnetic noise, high efficiency, long service life and high performance price ratio.
4. AC servo spindle motor is widely used in digital control machine, laser machine, milling machine, embroidery machine, textile machinery, printing machinery, packaging machinery, engraving machine, winding machine, three-coordinates measuring machine, industrial robot, medical equipment, woodworking router and other CNC machine.

Installation Dimension (Unit: mm)

Details

Tips: How does the AC servo spindle motor realize speed control?

AC servo spindle motor is a typical closed loop feedback system. The reduction gear set is driven by motor, and its terminal (output end) drives a linear proportional potentiometer for position detection. The potentiometer converts the corner coordinates into a proportional voltage and feeds it back to the control circuit board. The control circuit board compares it with the input control pulse signal, generates a correction pulse, and drives the AC servo spindle motor to rotate in the forward or reverse direction, so that the output position of the gear set is consistent with the expected value. The correction pulse tends to be 0, so as to achieve the purpose of precise positioning and constant speed of the AC servo spindle motor.
