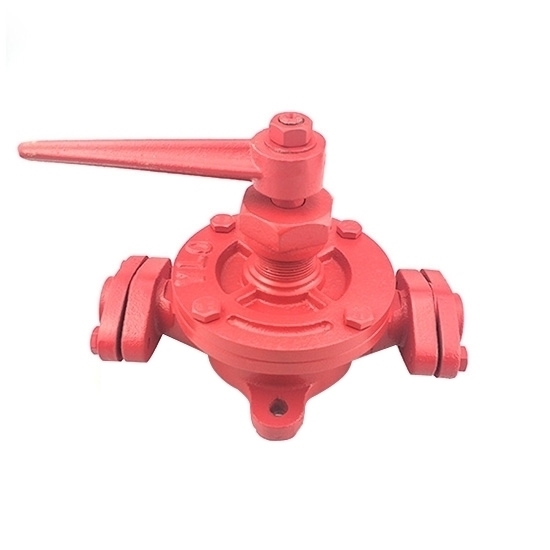

As the wing moves, wing pump creates pressure differences on its upper and lower surfaces due to its shape and motion. These pressure differences result in the fluid flowing in one direction. The efficiency and reliability of this 1-1/2 inch hand wing pump make it a preferred choice for tasks requiring robust performance and consistent water flow. Design of hand wing pump typically ensures smooth operation with minimal pulsation, which is advantageous for maintaining steady water pressure in distribution systems.

Features:

• Adopts with copper core rotary body.
• Reasonable design, compatible with construction pump materials.
• Small size. Small size and light weight make the wing pump easier to carry and install.

Specification:

• Model: YL-5
• Port Size: 1-1/2 inch
• Suction Capacity: 6.5m
• Lift Capacity: 18m
• Flow Rate: 65 L/min
• Material: cast iron

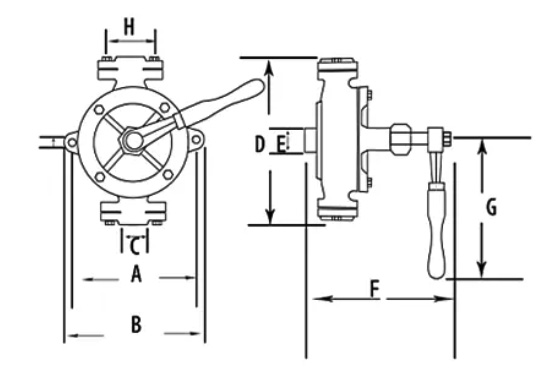

Dimension (Unit: mm)

Tips: What are the Advantages of Wing Pump?

• Simplicity. Hand wing pumps are simple in design, typically consisting of a lever or handle that is operated by hand to raise and lower a piston or plunger inside a cylinder. This simplicity makes them easy to operate and maintain.
• Reliability. Hand wing pumps are mechanically operated and do not rely on external power sources, such as electricity or fuel, making them reliable in situations where power outages or fuel shortages may occur.
• Versatility. Hand wing pumps can be used in a wide range of applications, including domestic water supply, irrigation, and livestock watering.
