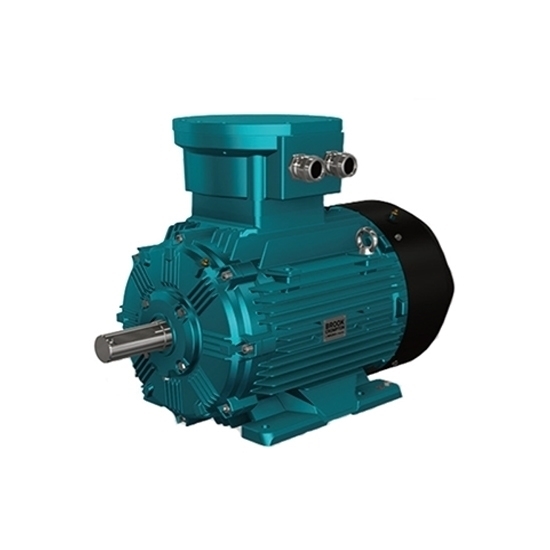

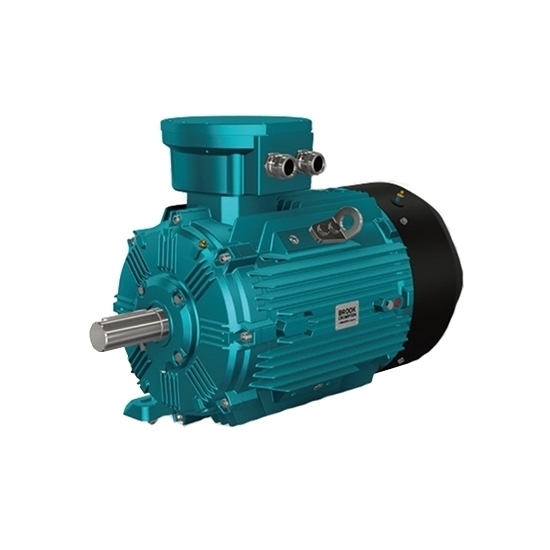

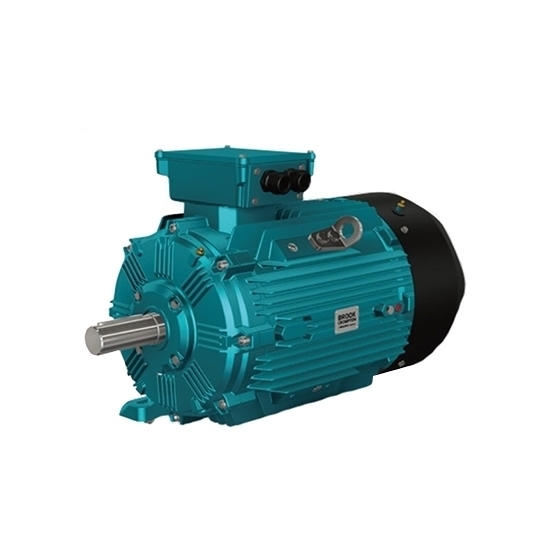

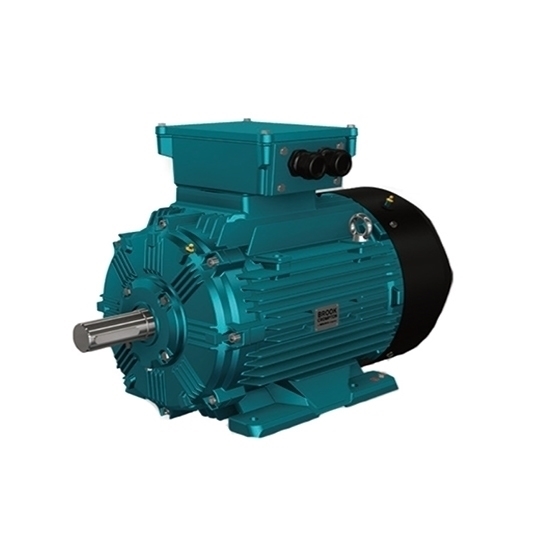

3hp (2kW) Explosion Proof Motor, 380V, 2P/ 3P/ 4P

0 reviews • Write a review

from

$929.68

Ex Tax: $929.68

Stock: In Stock
Model: RDDLZ-WEX3-90L
Weight: 1.00
SKU: RDDLZ-WEX3-90L

Available Options

Number of Poles

Installing Form

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3hp explosion proof motor with rated voltage 380V, -20℃~40℃ ambient temperature, humidity ≤90%, "Y" connection and IEC, EX, ATEX certificates. This types of induction motor has the advantages of high efficiency, low noise, low vibration, safety and convenient maintenance.

Specification

Model	RDDLZ-WEX3-90L
Numbers of poles	2P/ 4P/ 6P
Synchronous speed	3000r/min/ 1500r/min/ 1000r/min
Mounting types	B3/ B5/ B35
Rated power	3hp (2kW)
Rated voltage	380V (380V-660V can be customized)
Frequency	50Hz
Duty	S1
Ambient temperature	-20℃~40℃
Altitude	≤1000m
Humidity	≤90%
Terminal box position	Top
Type of cable entry	Cable grand
Enclosure	IP55
Inverter operation	Inverter use ready up to 500V acc
Insulation	Class F
Cooling type	IC411
Shaft key	Type A
Lubrication	Sealed
Connectiom	"Y" connection
Fan material	Engineered plastic
Rotation direction	Clockwise rotation at drive end
Winding temperature measurement	Thermistors (PTC)
Anti-corrosion grade	C3
Certificates	IEC, EX, ATEX
Explosion-proof mark	Ex d I Mb, Ex d ⅡB T4 Gb, Ex d ⅡC T4 Gb
Warranty	12 months

Dimensions (mm)

Mounting type	Frame size	Mounting dimensions (mm)													Outline dimensions (mm)
		A	A/2	B	C	H	n	K	M	N	P	R	S	T	AA		EV		LA	AB		BB		HA		AC	HD		L
		A	A/2	B	C	H	n	K	M	N	P	R	S	T	AA		EV		LA	AB		BB		HA		AC	Ex db eb	Ex db	L
B3	90L	140	70	125	56	90	4	10	-	-	-	-	-	-	37	34	12	15		172	180	200	155	12	12	175	275	280	426
B35		140	70	125	56	90	4	10	165	130	200	0	12	3.5	37	34	12	15	10	172	180	200	155	12	12	175	275	280	426
B5		-	-	-	-	90	-	-	165	130	200	0	12	3.5	-	-	-	-	10	-	-	-	-	-	-	175	285	290	426

Frame size	Shaft (mm)
Frame size	D	E	F	GA	DB
90L	24	50	8	27	M8*22

Details

Tips: Types of Explosion Proof Motor.

Increased safety motor:

It is a motor structure that does not produce arcs, sparks or dangerous high temperatures under normal operating conditions. Some mechanical, electrical and thermal protection measures can further avoid arcs under normal or approved overload conditions. Sparks or high temperature, so as to ensure its explosion-proof safety. Increased safety explosion-proof motors should be used at an ambient temperature of -20～40°C, or if the ambient temperature exceeds the above range, the manufacturer should mark the ambient temperature range on the outside plate. The tE time of the increased-safety explosion-proof motor should not be less than the time required for the thermal overload protection device to cut off the power supply of the motor when the rotor is locked.
