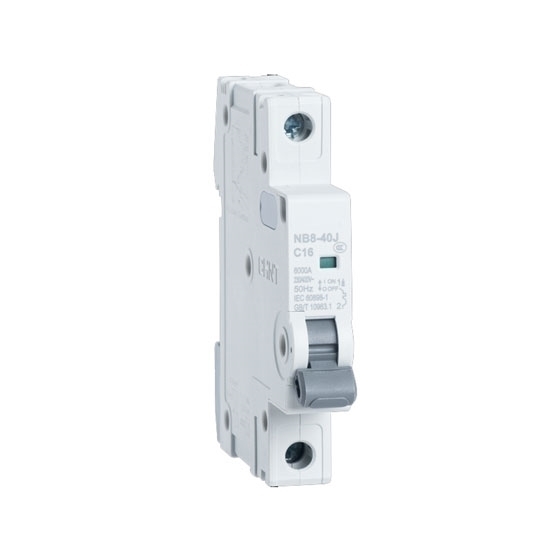

Factory price single pole miniature circuit breaker (MCB) is an electrical switch that automatically switches off the electrical circuit during an abnormal condition of the network means an overload condition as well as a faulty condition.

Single Pole MCB Breaker Information

• Rated Current: 32 amp
• Rated Voltage: 230/400V AC, 50Hz
• Number of poles: 1 pole
• 6 kA rated short-circuit breaking capacity
• Compliant with IEC standard
• C curve trip characteristic
• With overload protection and short circuit protection function

Technical Data

Single Pole MCB Breaker Dimension (Unit: mm)

Details

Tips for using a miniature circuit breaker

Miniature circuit breaker is mainly used for circuit overload, short circuits, over-current, loss of voltage, under voltage, grounding, leakage, dual power automatic switching and protection and operation of the motor during infrequent starting. The selection principle is in addition to complying with low-voltage electrical appliances.

• The rated voltage of the MCB should not be less than the rated voltage of the circuit.
• The rated current of the mini circuit breaker and the rated current of the overcurrent release are not less than the calculated current of the circuit.
• The rated short-circuit breaking capacity of the miniature circuit breaker is not less than the maximum short-circuit current in the circuit.
• When selecting a type of distribution circuit breaker, it is necessary to consider the coordination between short-delay short-circuit making and breaking capacity and time-delay protection levels.
• The rated voltage of the miniature circuit breaker undervoltage release is equal to the rated voltage of the circuit.
• When it is used for motor protection, the starting current of the motor should be considered when selecting the circuit breaker and it will not operate during the starting time.
