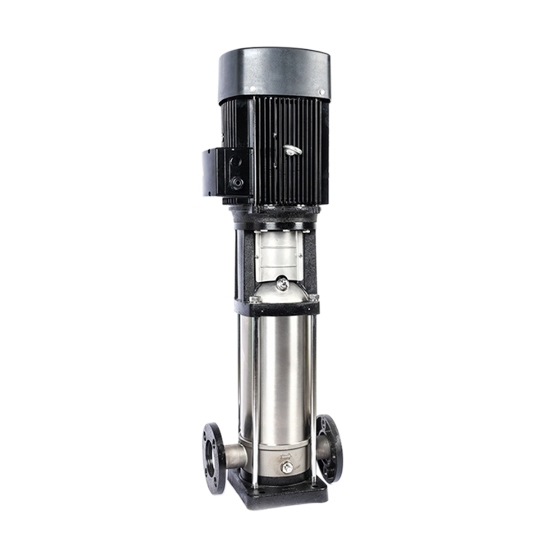

A vertical multistage centrifugal water pump is a type of pump used to move fluids, typically water, from one location to another. DN125 vertical multi stage centrifugal pump is designed to generate high-pressure output by utilizing multiple stages of impellers and diffusers stacked vertically within the pump casing.

Features:

• Excellent hydraulic model and advanced manufacturing technology, greatly improve the performance and service life of the pump.
• Mechanical seals made using hard alloy and fluorine rubber, improve the reliability of operation and the temperature of the transport medium.
• Compact structure, small size, lightweight, low noise, significant energy-saving effect, convenient maintenance.
• The inlet and outlet of the pump are located on the same level and can be directly used in the pipeline.

Specification:

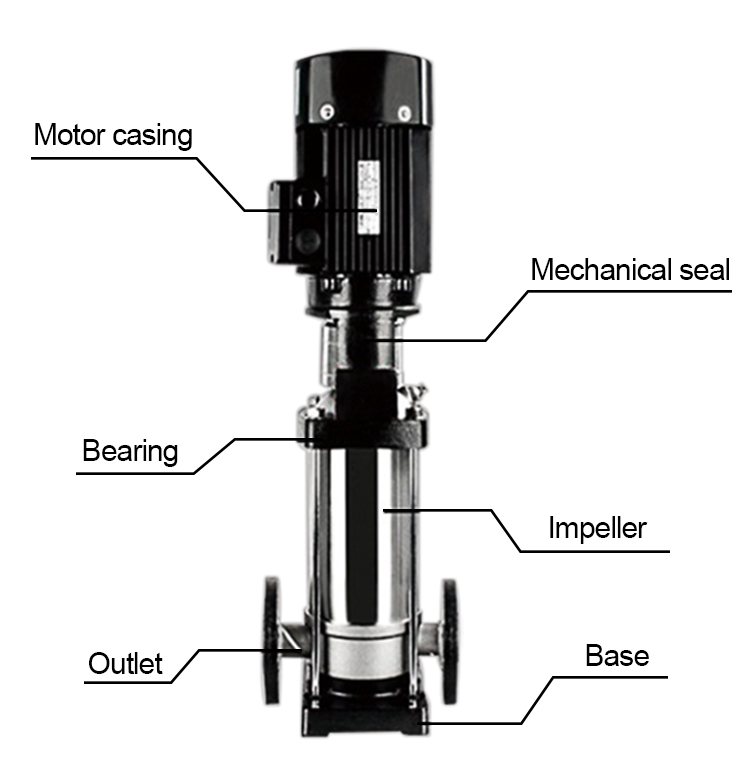

Structure:

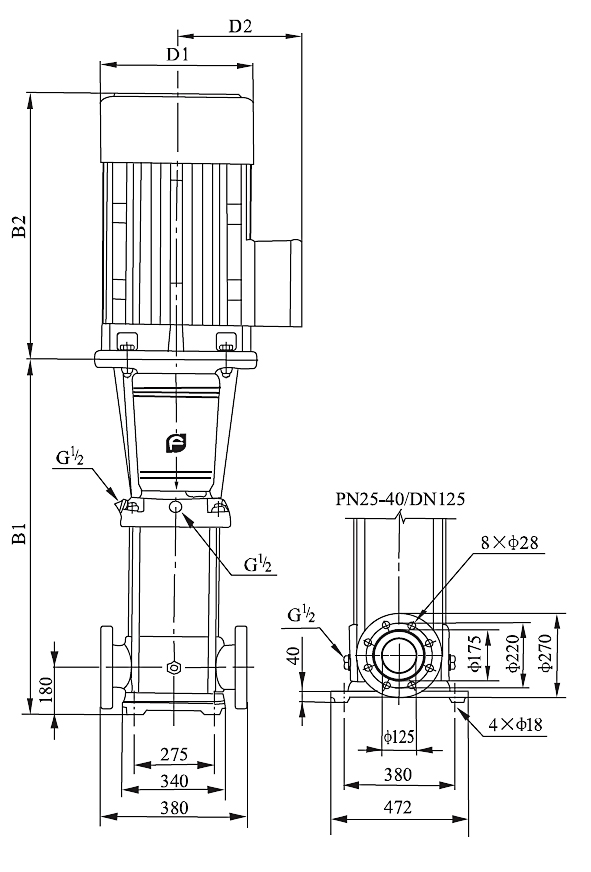

Mounting Dimension (Unit: mm)

Tips: Vertical Multistage Centrifugal Pump Troubleshooting

• Check Power Supply. Ensure that the pump is receiving the correct power supply voltage and frequency. Check for blown fuses, tripped circuit breakers, or other electrical issues.
• Check Motor Operation. Verify that the motor is running properly and not overheating. Check for any unusual noises, vibrations, or excessive heat from the motor.
• Inspect Pressure Gauges. Check the pressure gauges on the pump to ensure that they are functioning correctly. Compare the readings with the desired pressure levels.
• Check Suction and Discharge Lines. Make sure that the suction and discharge lines are free from blockages or obstructions. Check for leaks, cracks, or damage in the piping system.
• Inspect Impellers and Diffusers. Open the pump casing and inspect the impellers and diffusers for wear, damage, or clogs. Clean or replace any components that are worn out or obstructed.
