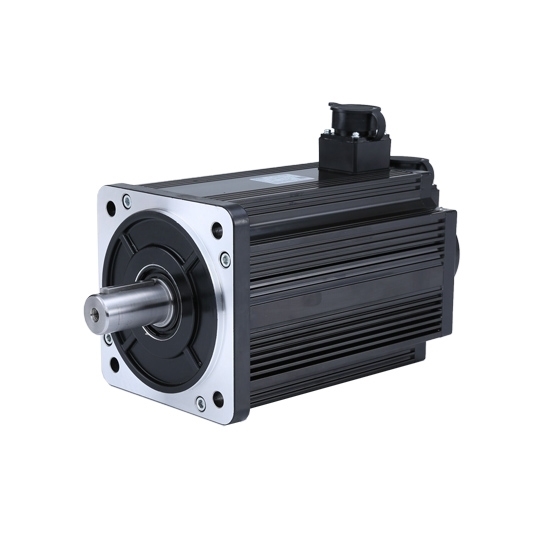

3.8 KW AC Servo Motor, 15 Nm/30 Nm, 2500 Rpm

0 reviews • Write a review

from

$1,316.69

Ex Tax: $1,316.69

Stock: In Stock
Model: ATO150ST-M15025
Weight: 1.00
SKU: ATO150ST-M15025

Available Options

Short Description

Rated Voltage

With Matched Controller

Absolute Encoder

Motor Cable & Encoder Cable

Motor Encoder Type

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low cost AC servo motor, brushless design, 3.8 kW (5 hp), with a rated speed of 2500 rpm, maximum speed of 5500 rpm, 17 amps, three phase 220V or 380V AC input, providing excellent dynamic response.

Specification

Basics	Model	RDDLZ150ST-M15025
	Matched Drive Model	RDDLZMG-1000 (Click it to the product page)
	Square Flange Size	150 mm
	Rated Power	3.8 kW (5 hp)
	Rated Voltage	Three phase 220V AC (Optional: 380V AC)
	Rated Current	17 A
	Rated Speed	2500 rpm
	Rated Torque	15 Nm
	Peak Torque	30 Nm
	Weight	15 Kg
	Length	230 mm
	Speed and Torque Characteristic Curve	Download PDF
Technical Parameters	Voltage Constant	59 V/ 1000r/ min
	Brake Voltage	24V DC
	Torque Coefficient	0.88 Nm/ A
	Torque Inertia	3.88 x 10^-3 Kg.M²
	Line-Line Resistance	0.23 Ω
	Line-Line Inductance	1.08 mH
	Electrical Time-Constant	4.7 ms
	Encoder Line Number	2500 PPR
	Absolute Encoder	17 bit, 23 bit (Tamagawa brand)
	Insulation Class	Class F
	Safety Class	IP65
Environment	Temperature	-20℃ ~ +40℃
Environment	Humidity	<90%RH, (no dewing)

Dimension (unit=mm)

LA (without brake): 230mm, LA (with brake): 303mm

Details

Winding and Encoder Connection

1. For servo motor winding

motor Winding Plug	Motor Line	U	V	W	PE
motor Winding Plug	Socket Number	2	3	4	1

2. For incremental encoder

Incremental Encoder Socket (15 Pin)	Signal Definition	5V	0V	B	Z-	U	Z	U-	A	V	W	V-	A-	B-	W-
Incremental Encoder Socket (15 Pin)	Socket Number	2	3	4	5	6	7	8	9	10	11	12	13	14	15

3. For absolute encoder

Absolute Encoder Socket (7 Pin)	Signal Definition	E-	E+	SD-	0V	SD+	5V	PE
Absolute Encoder Socket (7 Pin)	Socket Number	2	3	4	5	6	7	1
