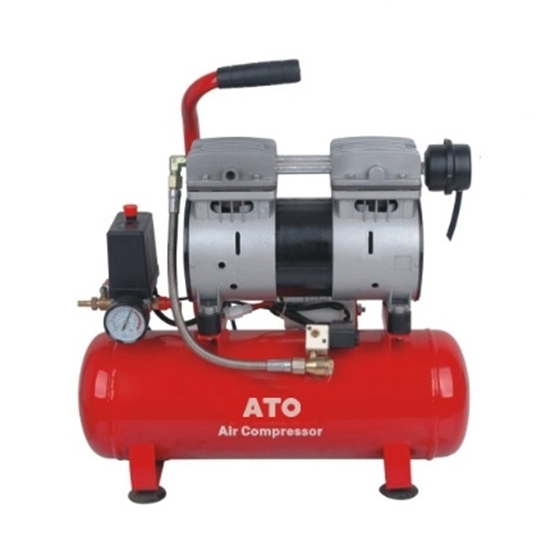

3/4 Hp Mini Air Compressor, 115 PSI, 2/4/5 Gallon

0 reviews • Write a review

from

$351.31

Ex Tax: $351.31

Stock: In Stock
Model: RDDLZ-COMPR-304
Weight: 1.00
SKU: RDDLZ-COMPR-304

Available Options

Short Description

Tank Capacity

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Portable small air compressor offers 115 PSI maximum pressure and air delivery 3.8 CFM, is powerful enough to operate a wide range of general-purpose air tools and machinery.

3/4 hp Air Compressor Features

Powered by a 0.55 kW motor
1440 rpm rated speed
2 Gal., 4 Gal., 5 Gal. capacity are available
Running in a high automatization and intellectualization, no pollution

3/4 hp (550W) Air Compressor Description

Model	MZB-550H9
Size	47 (L)20 (W)54 (H) CM
Type of the Air Compressor	Direct drive
Tank Capacity	2 Gal. (Can be customized)
Motor Power	3/4 hp, 0.55 kW (Can be customized)
Power Source	AC Power
Voltage	120V, 60Hz (Can be customized)
Air Delivery	110L/Min, 3.8 CFM
Maximum Pressure	8 Bar, 115 PSI
maximum Speed	1440 rpm
Certification	CE, ROHS, CCC, ISO
Noise Level	with 80DB
Warranty	1 Year
Cooling Method	Air Cooling

Choose Your Air Compressor

You could choose different types of 3/4 hp air compressor pumps with different capacities of air tanks.

Model	Gal.	kW	HP	Cylinder	L/min	RPM	PSI	CFM	Bar	Size (cm)
MZB-550H9	2	0.55	3/4	63.7x2	110	1440	115	3.8	8	472054
MZB-550H15	4	0.55	3/4	63.7x2	110	1440	115	3.8	8	383860
MZB-0.067/8	5	0.55	3/4	67x1	67	2880	115	2.4	8	404060

Note: Tell us your application needs, we can customize the air compressor to meet your precise power, tank capacity, air delivery and rated voltage requirements.

Air Compressor Applications

Details

Tips: How to deal with the over-temperature of air compressor

The air compressor will produce a very high temperature in the working process, and the high temperature will also affect its normal use. It is very important to understand the causes and solutions of the abnormally high temperature of the machine.

1. Maybe the cooler is dirty

The over-temperature of air compressor outlet may be that the cooler is dirty or sometimes the air compressor pipe is blocked. Of course, it is also related to the valve. The solution is to clean the cooler regularly and to check the pipe, including first stage and second-stage air valve. We should pay close attention to water pressure, air pressure of different levels, lubrication pressure and noise when cleaning and checking running machines regularly.

2. Maybe the pressure valve is not closed

If the deslagging is abnormal, you should check whether the low pressure and high water pressure are ideal, test the oil separator, start and operate, pay attention to the noise, and check if the motor circuit is normal after maintenance each time. You should check the minimum pressure valve because when the air compressor starts, the minimum pressure valve is closed in order to guarantee the oil pressure. If the minimum pressure valve is not closed in starting-up, it may cause overload and temperature rise in starting-up.
