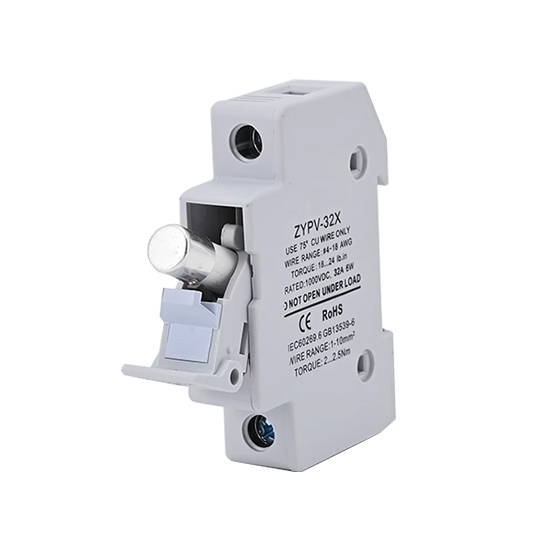

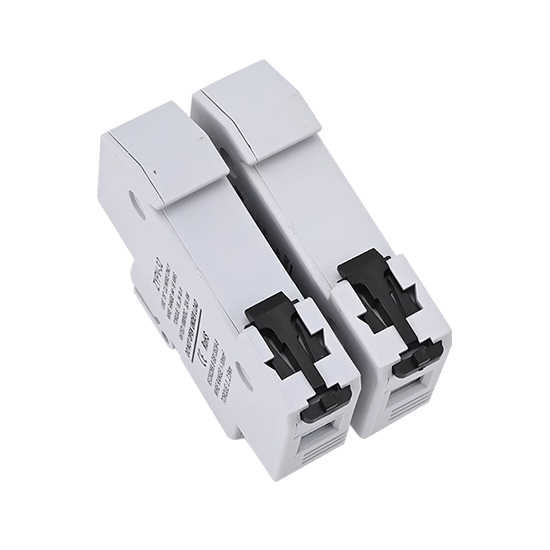

1000V/1500V DC fuse is a safety device used to protect solar photovoltaic (PV) systems. Factory price 25 amp fast blow fuse comes with a DIN rail fuse holder for easy installation and replacement.

Specifications

• Model: RDDLZ-ZYPV-25
• Fuse Core Size: 10x38mm or 10x85mm
• Working Current: 25A
• Rated Voltage: 1000V DC/1500V DC
• Fire Extinguishing Medium: High Silica Quartz Sand
• Temperature Range: -40℃~+90℃
• Fuse Tube Material: 95% High Strength Alumina Porcelain
• Shell Material: Nylon
• Melting Core Material: Silver Plated strip
• Breaking Capacity: 20kA
• Time Constant: 1~3ms
• Fuse Core Standard: GB/T 13539.6

Features

• DC Fuse for Solar: It is a solar fuse that consists of a 25 amp DC fuse and a DIN rail fuse holder, equipped with a PV-specific flame-retardant housing material.
• Two-Stage Spring Buckle: The solar PV fuse has a midway stop function, which is convenient for installing and removing the product.
• 95 Alumina Porcelain Core: It has low-temperature rise and strong arc extinguishing performance.
• Multiple Cooling Holes On The Side: This can enhance the air circulation inside the DC fuse, which is suitable for various high-temperature environments.

Installation Method

Dimension (Unit: mm)

Applications

RDDLZ DC fuse with a fuse holder is specifically designed for use in solar power systems operating on direct current (DC). Its primary purpose is to provide overcurrent and short-circuit protection within the system. By interrupting the circuit when the current exceeds safe levels, the PV fuse prevents damage to solar panels, charge controllers, batteries, inverters, and other components.

Tips: What is the purpose of a DC fuse in an electrical system?

The purpose of a DC fuse in an electrical system is to provide protection against overcurrent conditions. DC fuses are designed to interrupt the flow of direct current when the current exceeds a safe threshold. They act as a safety device that prevents excessive current from flowing through the circuit and causing damage to the electrical components or posing fire hazards. By quickly interrupting the circuit, DC fuses help protect the system, wiring, and connected devices from the potentially harmful effects of overcurrent, ensuring the safe and reliable operation of the electrical system.
