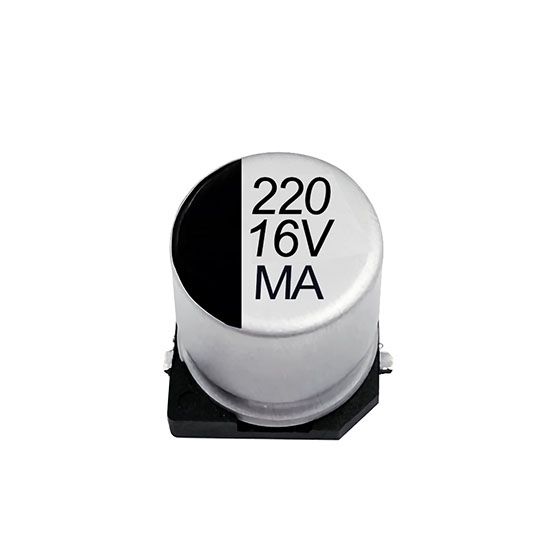

220μF 16V SMD Electrolytic Capacitor

0 reviews • Write a review

from

$1.21

Ex Tax: $1.21

Stock: In Stock
Model: RDDLZ-EC-HV221M
Weight: 1.00
SKU: RDDLZ-EC-HV221M

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High quality surface mount electrolytic capacitor has high ripple current, surface mount installation type. Power capacitor providing good electrical performance, wide application range and high reliability.

Features

Endurance: 105℃ - 2000 hours
Low ESR and high ripple current
Vibration-proof (vP) version (up to 30g) available upon request
AEC-Q200 version available
High voltage, automotive 105°C type

Specification

Model		RDDLZ-EC-HV221M
Capacity		220㎌
Rated voltage		16V
Size		6.3*7.7 mm
Installation type		Surface mount
Operating temperature		-55~105℃
Cap. tolerance (∆C)		±20% (120Hz 20℃)
Dissipation factor (tanδ)		20%
Low temperature characteristic at 120Hz (Z ratio max.)		3 (Z-25℃/Z+20℃)
Leakage current (L_leak)		≤0.01CRV_Ror 3 ㎂ * after 2 minutes
Enduarance (105℃)	Test	2000h
	∆C	≤20% of initial measured value
	tanδ	≤200% of specified measured value
	L_leak	≤ the specified measured value
Shelf life (105℃)	Test	1000h
	∆C	≤20% of initial measured value
	tanδ	≤200% of specified measured value
	L_leak	≤ the specified measured value
Resistance to soldering heat (105℃)	∆C	Within ±10% of initial value
	tanδ	Less than specified value
	L_leak	Less than specified value

Dimension (mm)

Model	Dimension (mm)
RDDLZ-EC-HV221M	∅D	6.3
	L	7.7
	a	Max
	A	6.6
	B	6.6
	C	7.2
	W	0.5~0.8
	P±2	2.2

Tips: Features of SMD Electrolytic Capacitor.

The SMD aluminum electrolytic capacitor and the bottom plate are welded with tin, and the bottom of the capacitor and the bottom plate are tightly attached without any gap at all;
There are no solder joints on the back of the circuit board, so there is no possibility of short circuits. On the other hand, SMD electrolytic capacitors are higher than plug-in capacitors in terms of components selected and production process costs.
