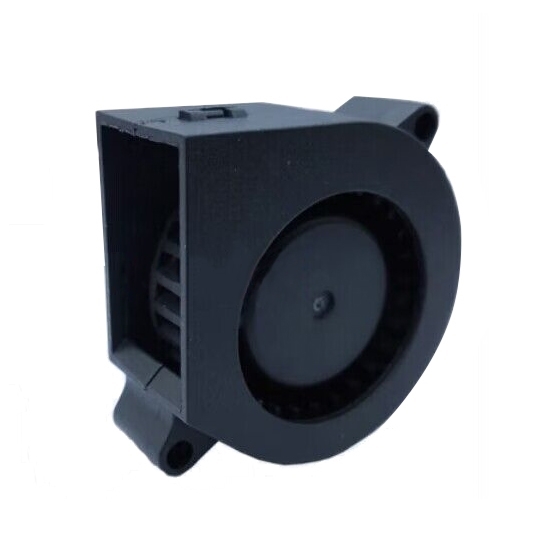

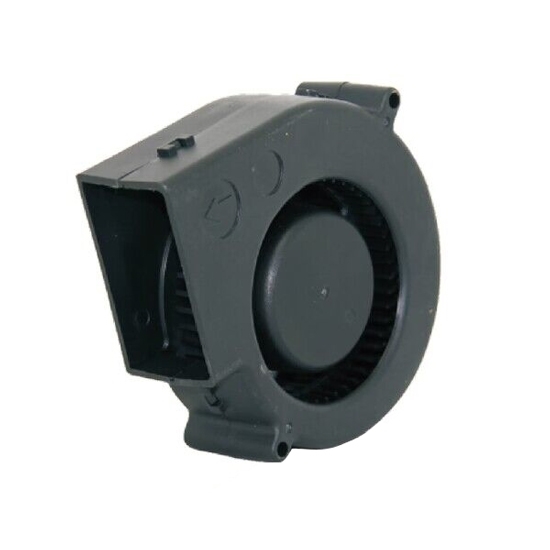

12V/24V DC Brushless Cooling Blower Fan, 120mmx32mm

0 reviews • Write a review

from

$79.68

Ex Tax: $79.68

Stock: In Stock
Model: RDDLZ-CBF-1232
Weight: 1.00
SKU: RDDLZ-CBF-1232

Available Options

Rated Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

120mm DC centrifugal fan for sale, rated voltage 12 volt or 24 volt, airflow 0.88 m3/min, cooling blower fan speed 3300 rpm. The cooling blower fan has a compact design and is ideal for use in small spaces.

Specification

Model	RDDLZ-SJ1232
Rated Voltage	12V	24V
Rated Current	1.2A	0.60A
Rated Power	14.4W
Fan Speed	3300 rpm
Noise	51 dB
Air Volume	0.88 m3/min
Frame	Heat shrinkable polyester, environmentally friendly & fire resistant
Fan Blades	Heat shrinkable polyester, environmental friendly & fire resistant
Bearing Type	Ball Bearing & Oil Bearing
Lead Wire	1007 24AWG Red+ Black- 1007 24A WG Red + Black
Motor Protection	Impedance protection, reverse polarity protection, automatic restart
Operating Voltage	3.5V~6.5V, 6V~13.8V, 12V~26.5V
Operating Temperature/Humidity	-10°C~70°C 35%~ 85%RH
Storage Temperature/Humidity	-40°C~80°C 35%~85%RH
Weight	278g

Dimension: (Unit: mm)

Performance Curve

Applications

Cooling blower fans are widely used in various industries and applications where cooling is required, such as computer cooling systems, industrial machinery, and HVAC systems. These fans work by drawing in hot air and blowing it out to dissipate heat, thereby maintaining a safe operating temperature. They are also commonly used in automotive applications to cool engines and other components. Additionally, cooling blower fans are used in medical equipment and scientific instruments where precise temperature control is essential for accurate measurements and analysis.

Tips: What is a cooling blower fan?

A cooling blower fan is a type of mechanical fan that is used to cool down electronic or mechanical devices. These fans work by drawing cooler air from the surrounding environment and directing it towards the device or component that needs to be cooled.

The fan blades of a cooling blower are designed to create a continuous flow of air by drawing it in through an inlet and expelling it out through an outlet. They are typically powered by an electric motor and can vary in size and speed depending on the requirements of the device being cooled.

Cooling blower fans are commonly used in computers, servers, power supplies, and other electronic devices that generate a lot of heat. They can also be used in industrial applications to cool machinery and other equipment. By maintaining a steady flow of cool air, these fans help to prevent overheating and damage to the devices they are cooling.
