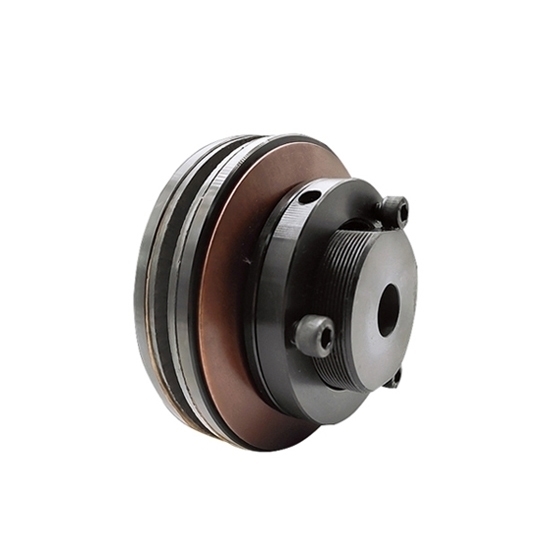

10mm Friction Torque Limiter

0 reviews • Write a review

from

$78.69

Ex Tax: $78.69

Stock: In Stock
Model: RDDLZ-FTL-10MM
Weight: 1.00
SKU: RDDLZ-FTL-10MM

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price 10mm friction torque limiter for sale online. It can be a torque limiter coupling with an optional 6.9~27 N.m or 14~54 N.m torque range, durable service life, large transmission torque and wide applications.

Specifications

Model	RDDLZ-CTL250-1	RDDLZ-CTL250-2
Torque Range	6.9~27 N.m	14~54 N.m
O.D. of Bush	41 - 0.025	41 - 0.050
Bore for Centre Member	41+ 0.039	41 + 0
Bush Length	4.5	8.0
Weight	0.74kg
Plain Bore	10
Max. Bore	22
Max. Speed	6600 rpm

Dimension (Unit: mm)

D	DH	L	I	T	t	S (Max)	A	C
65	M35	48	16	4.0	3.2	9	4	50

Applications

The recommended 10mm friction torque limit coupling is utilized to prevent damage to machinery and equipment by limiting torque levels during overload conditions, ensuring safety and protecting critical components in various industrial settings.

Tips: Is torque limiter a torque limiter coupling?

Yes, a torque limiter is often referred to as a torque limiter coupling. A torque limiter is a mechanical device that limits the amount of torque that can be transmitted through a rotating shaft, and it is commonly used in couplings to protect machinery and components from excessive torque or overload. So, in many cases, the terms "torque limiter" and "torque limiter coupling" are used interchangeably to describe the same type of device.
