100W Brushless AC Servo Motor, 3-phase 220V

0 reviews • Write a review

from

$416.54

Ex Tax: $416.54

Stock: In Stock
Model: ATO40ST-M00330220
Weight: 1.00
SKU: ATO40ST-M00330220

Available Options

Short Description

Absolute Encoder

Motor Cable & Encoder Cable

With Matched Drive

Motor Encoder Type

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

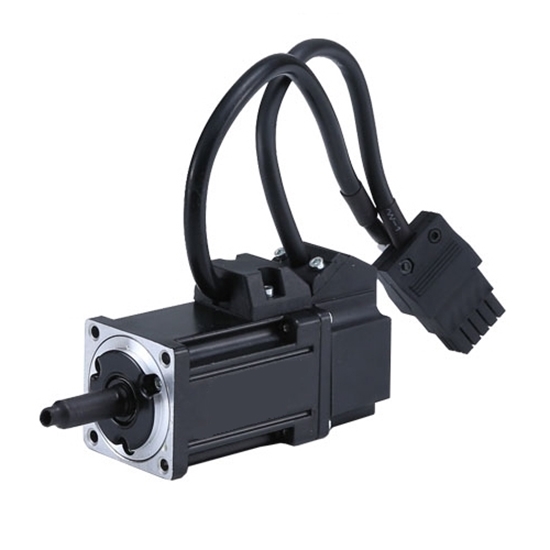

100W AC brushless servo motor, 1-phase or 3-phase 220V AC voltage, 3000 rpm high speed, 0.32 Nm rated torque, peak torque to 0.64 Nm, 2,500 PPR incremental / absolute encoder attached. Low cost industrial servo motor, manufacturer direct sale.

Specification

Basics	Model	RDDLZ40ST-M00330220
	Matched Drive Model	RDDLZMG-1000 (Click it to the product page)
	Square Flange Size	40 mm
	Rated Power	100 W
	Rated Voltage	single phase or three phase 220V AC
	Rated Current	0.6 A
	Rated Speed	3000 rpm
	Rated Torque	0.32 Nm
	Peak Torque	0.64 Nm
	Weight	0.47 Kg
	Length	90 mm
Technical Parameters	Voltage Constant	36.8 V/ 1000r/ min
	Torque Coefficient	0.53 N.m/ A
	Torque Inertia	0.051 x 10^-4 Kg.M²
	Line-Line Resistance	34 Ω
	Line-Line Inductance	40 mH
	Electrical Time-Constant	1.18 ms
	Encoder Line Number	2500 PPR
	Absolute Encoder	17 bit, 23 bit (Tamagawa brand)
	Insulation Class	Class B
	Safety Class	IP65
Environment	Temperature	-20℃ ~ +40℃
Environment	Humidity	<90%RH, (no dewing)

Dimension (unit=mm)

L (without brake): 90mm, L (with brake): 124mm

Details

Winding and Encoder Connection

1. For servo motor winding

Motor Winding Plug	Incremental Encoder Line	U (Red)	V (Brown)	W (Green)	PE (White)
	Absolute Encoder Line	PE (White)	U (Red)	V (Green)	W (Brown)
	Socket Number	1	2	3	4

2. For incremental encoder

Incremental Encoder Socket (15 Pin)	Signal Definition	5V	0V	B	Z-	U	Z	U-	A	V	W	V-	A-	B-	W-
Incremental Encoder Socket (15 Pin)	Socket Number	2	3	4	5	6	7	8	9	10	11	12	13	14	15

3. For absolute encoder

Absolute Encoder Socket (7 Pin)	Signal Definition	E-	E+	SD-	0V	SD+	5V	PE
Absolute Encoder Socket (7 Pin)	Socket Number	2	3	4	5	6	7	1
