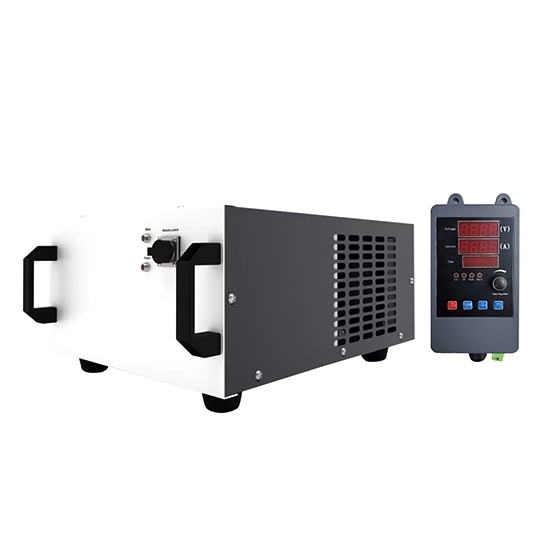

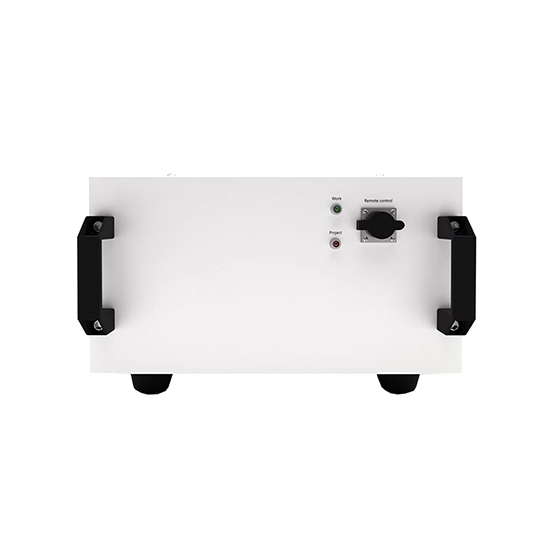

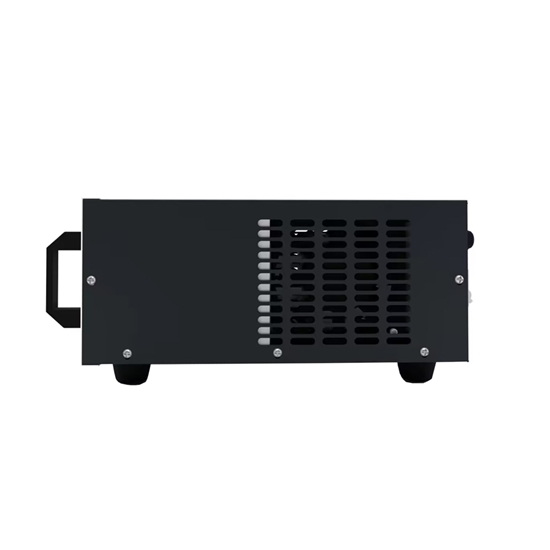

Factory wholesale high efficiency industrial plating machine combined with remote controller box, 1000 amps high current, customized wide range 220-1000V AC three phase input voltage and 8-500V DC output voltage. Reliable quality and competitive price rectifier switching power supply will definitely satisfy your requirements.

Application: This kind of plating rectifier is mainly used in brush plating process, suitable for repairing plated work pieces with defects, depositing different metal patterns on metal surfaces and electrolysis degreasing and plating process etc.

Specification

Plating Rectifier Main Technical Features

• Operation mode: Remote control or manual control for optional.
• Output control mode: One-way pulse and two-way pulse output control for optional.
• Constant output control mode: Constant current and constant voltage control modes can be selected.
• Soft start time: Soft start working time can be set in the range of 0-200s.
• High control accuracy: Control accuracy ≤ ± 1%.
• Rectification mode: IGBT inverter soft switch rectification, PWM pulse step modulation, IGBT chopper control mode.
• Pulse pacing frequency range: 1000-8000Hz.
• Man-machine operation interface: PLC color touch screen.
• Main controller: DSP microcomputer digital trigger control, PWM pulse width adjustment control, pulse phase shift resolution ≤1μs.
• Main protection functions: AC power phase loss, overvoltage, undervoltage, fast fuse blowing alarm and circuit breaker protection; output overcurrent, current limit protection, output short circuit, instantaneous overload protection; IGBT switch module, fast rectifier components, switching rectifier transformer, busbar copper bus overtemperature and overheating, fan overheating or water pressure is too high/low, blocking PWM trigger pulse protection.
• Communication method: CAN bus, PROFIBUS, ETHERNET industrial Ethernet, RS485, and RS232 optical fiber communication can be configured according to customer needs to achieve remote group control or monitoring.
• With 1-5 stages of constant current slow rise and slow down stage number control, each stage oxidation current and oxidation time can be set separately.
• Real-time recording of multiple process parameters and real-time curves such as forward and reverse current / voltage, pulse current/voltage amplitude, pulse duty cycle, pulse frequency, oxidation time, bath temperature, etc.

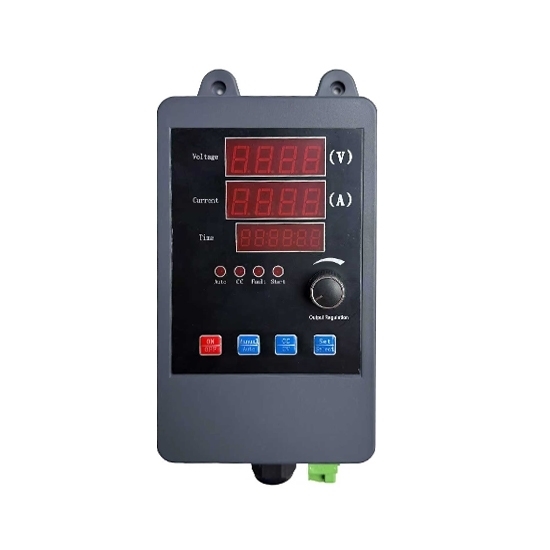

• Remote operation control box: The remote operation control box can be configured according to the customer's site conditions, the plating rectifier machine and the remote control box are separated to prevent, the field operation is more convenient, and the rectifier's corrosion protection is significantly enhanced.
• 5 sets of process parameters can be stored or recalled to shorten the processing programming time.
• Can be connected to the computer through the RS485 communication interface, or stored in the U disk and transferred to the computer, which is convenient for the customer to save the file and analyze the product process quality of the oxidized workpiece.
• Workpiece coating quality: Compactness, smoothness and corrosion resistance are significantly better than the ordinary plating process.

Tips: The power indicator on the plating rectifier doesn't work. What should I do?

The power switch indicator light is set in the electroplating rectifier equipment for the convenience of detecting power failure. When it is normally energized, it will give off normal light. When it is no longer luminous, it is obvious that there is a fault in the power supply. The reasons for the fault are as follows:

1. The power cord is not plugged in properly. It may be the power socket is not strong, or the power cord and socket are damaged. At this time should be plugged into the socket, and connected to the power supply, usable pen detection is a problem.
2. The main switching power supply connected to the rectifier is not connected. This may be caused by the staff forgetting for a while, so please turn on the main power supply.
3. In addition, the lack of phase in the three-phase power supply will also cause the plating rectifier to fail to supply power normally and should be checked and repaired in time.
