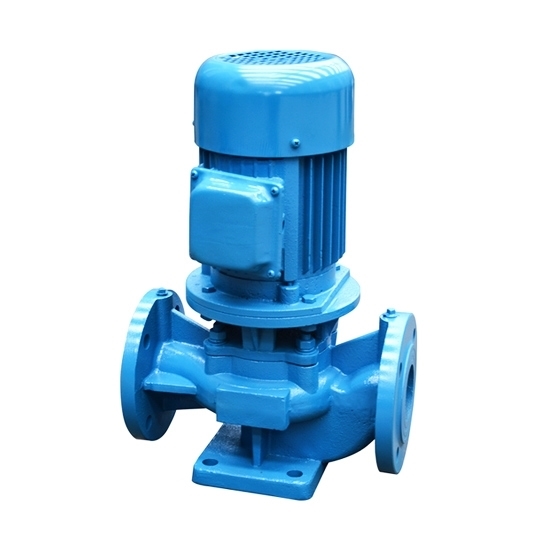

1 hp single stage vertical centrifugal pump for sale. It has a maximum flow of 5.2m³/h, a maximum lift of 20.6m, an inlet and outlet diameter of 25mm.

Features:

• The centrifugal pump has a vertical structure, and its inlet and outlet have the same diameter. The inlet and outlet are on the same centerline so that they can be installed in the pipeline like a valve. If a protective cover is added, it can be used in the open air.
• Easy to install and maintain. There is no need to dismantle the piping system, just remove the connecting flat nut of the vertical pump. All rotor parts can then be removed.
• The vertical pump can be installed vertically or horizontally according to the requirements of the piping system.
• Vertical centrifugal pumps can be run in series or in parallel according to the requirements of flow and head.

Specification

• Model: RDDLZ-VCP-25-125
• Power: 1 hp (0.75kW)
• Number of stages: Single stage
• Input voltage: AC 220V~480V
• Input frequency: 50Hz/60Hz
• Inlet diameter: 25mm (1 inch)
• Outlet diameter: 25mm (1 inch)
• Flow (min. flow to max. flow): 2.8m³/h (12.3 gpm), 4m³/h (17.6 gpm), 5.2m³/h (22.9 gpm)
• Head (max. head to min. head): 20.6m (68ft), 20m (66ft), 18m (59ft)
• Efficiency: 28%, 36%, 35%
• Installation mode: Vertical type or horizontal type
• Nominal diameter of impeller: 125mm
• Size: 260*230*435mm
• Weight: 55kg

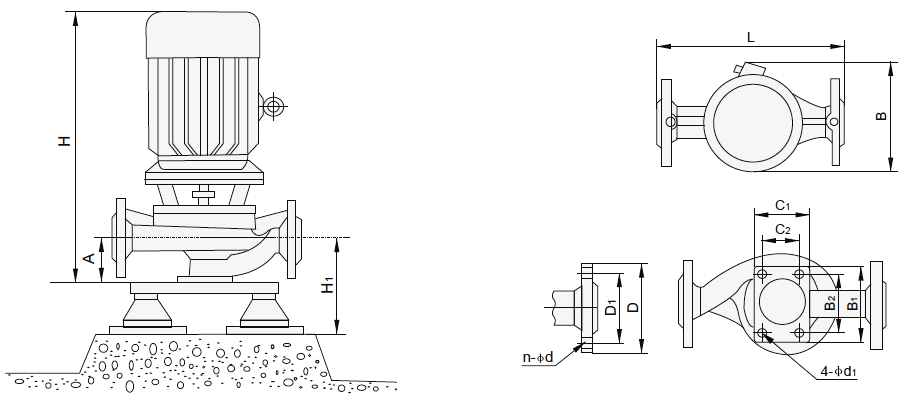

Vertical centrifugal pump dimension (unit: mm):

Details

Tips: Application range of centrifugal pump

1. Centrifugal pump is suitable for high-rise building pressurized water supply, garden sprinkler irrigation, cooling tower water feeding, long-distance water delivery, air conditioner, refrigeration and bathroom, the cold and hot water cycle pressurization. The operation temperature is below 80 ℃.
2. Centrifugal pump is applicable to the hot-temperature hot water pressurizing circulation of the heating, boiler and other industries. The operation temperature is below 130℃.
3. A Centrifugal pump is suitable for conveying corrosive media in the process of food, pharmaceutical, winemaking, chemical and other industries. The operation temperature is below 80 ℃.
4. A Centrifugal pump is suitable for transporting non-corrosive liquids. It is applicable to industrial sites with methane or other explosive mixtures. The operation temperature is below 80℃.
5. Centrifugal pump is suitable for transporting chemical, pharmaceutical, petrochemical, food, national defense and other industrial corrosive liquids. It is applicable to industrial sites with methane or other explosive mixtures. The operation temperature is below 150 ℃.
