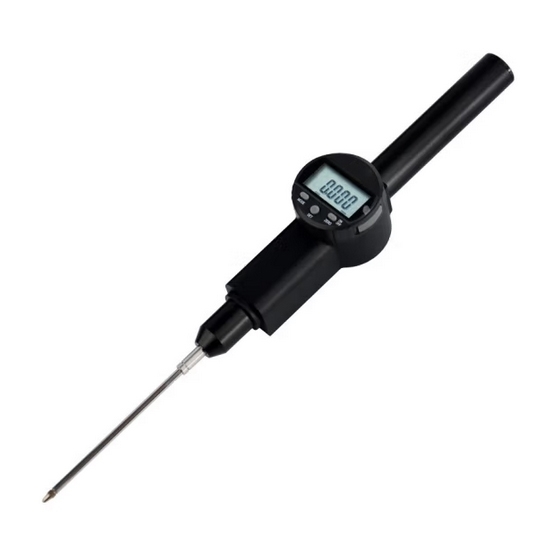

The digital depth gauge for sale at a low price, it comes with a wide measuring range of 0-4 inches and a resolution of 0.0005 inch. Our digital dial indicator features a large LCD display, making it easy to read results even in low light conditions.

Specification

• Model: RDDLZ-SI-G3100
• Range: 0-4 inch (0-100 mm)
• Resolution: 0.0005 inch (0.01mm)
• Accuracy: ±0.02mm
• Repeatability: 0.01mm
• Sensor: Glass grid displacement sensor
• Display: LCD
• Response Speed: 1.5m/s
• Sleeve Diameter: Metric (ISO/GB): 8mm, Imperial (ANSI): 3/8 inch
• Measuring Rod Movement Speed: 1.5m/S
• Measuring Head: M2.5X0.45 threaded carbide
• Operating Temperature: 0-40°C
• Storage Temperature: -109C-60°C
• Battery: 3V CR2032 button cell: 2000 working hours, 0-5mm Battery: 3V CR1632 button cell

Features

• The digital dial indicator has a large screen that displays the measured values in digital form.
• The digital dial indicator is equipped with a data output for easy transfer of measurement data to a computer or other device.
• The digital dial indicator features a highly sensitive glass sensor for fast and accurate measurements.
• Digimatic indicator with absolute and relative measurement modes.
• Digital dial gauge housing is made of space-aluminium ceramic oxide technology and is durable and scratch-resistant.
• Digital indicators can be converted from metric to imperial in any position.

Dimension: (Unit: mm)

Details

Applications

Digital dial indicators are commonly used in the manufacturing industry for precision measurement tasks such as quality control, machine setup, and alignment. They are also used in the automotive industry for measuring engine components, brake rotors, and tire tread depth. Additionally, absolute digimatic indicators are useful in the field of engineering for measuring the deflection or deformation of materials under load.

Tips: How to zezo a digital dial gauge?

1. Turn on the digital dial gauge by pressing the power button.
2. Check the display screen to ensure that the gauge is reading zero. If it is not, press the "zero" button or the "tare" button to reset the gauge to zero.
3. Place the digital dial gauge on a flat and stable surface.
4. Press the measuring tip of the gauge firmly against the surface that you want to measure.
5. Take note of the reading displayed on the gauge.
6. If you need to zero the gauge again, lift the gauge off the surface and press the "zero" or "tare" button to reset the gauge to zero.
7. Repeat the process until you get an accurate reading.
8. Once you have taken your measurements, turn off the gauge by pressing the power button.
